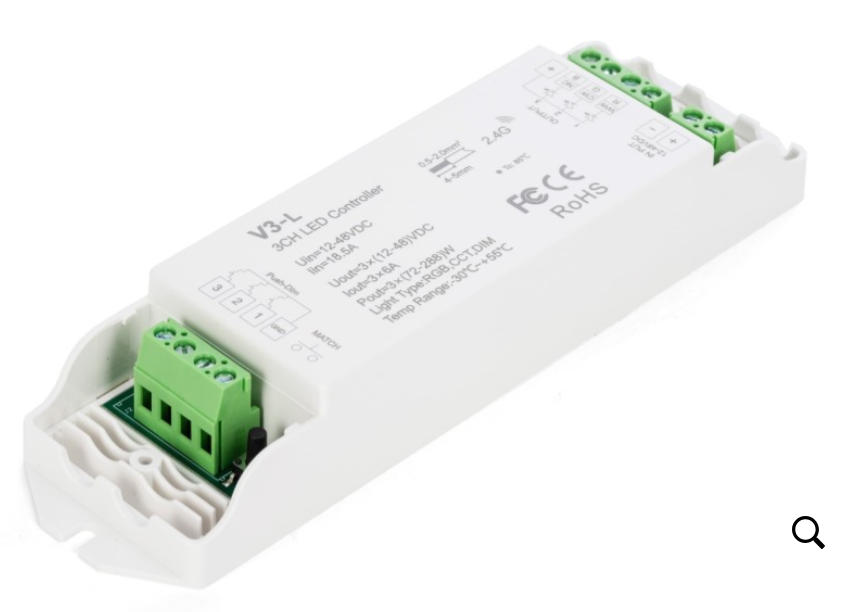

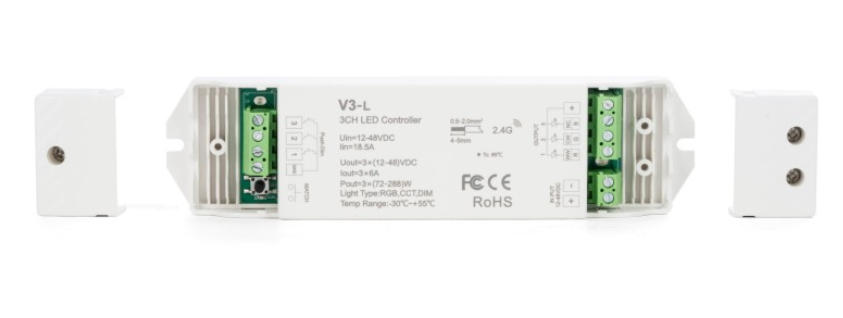

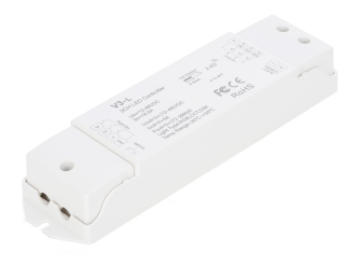

V3-L

Input voltage: 12-48VDC

Output voltage: 3x(12-48)VDC

Output current: 3CH,6A/CH

Output power: 3x(72-288)W

Dimming range: 0-100%

PWM frequency: 1000Hz (default)

Operation temperature: Ta: -30OC ~ +55OC

Case temperature (Max.): Tc: +85OC

IP rating : IP20

Size: L178x W50 x H38mm

Reverse polarity,Over-heat Over-load,Short circuit

White box package
